Canyon Ridge® Modern

By:

Insulated modern style garage doors with faux wood overlays.

Contact us about this product

Canyon Ridge® Modern

Faux wood garage doors are constructed from a durable, low-maintenance, composite material that won't rot, warp or crack.

Download Product Brochure

Overview

Canyon Ridge® Modern series garage doors provide a range of contemporary garage door styles that beautifully complement mid-century and modern homes. Choose from horizontal plank designs, aluminum inlays, and full-view glass options, all with faux-wood finishes that won’t rot, warp or crack. These low-maintenance garage doors are the perfect way to highlight natural materials and other textures on your home’s exterior.

Construction Overview

  • 4-layer construction including durable, composite, steel, and Intellicore insulation. R-Value 20.4
  • Features our Safe-T-Bracket®, which prevents injury that could occur if the bottom bracket were removed with the door closed and under tension.
  • Heavy-duty 14-gauge steel hinges and brackets provide smooth operation.
  • 10-ball nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Replaceable vinyl bottom weather seal with a rustproof aluminum retainer.
  • Learn more about Canyon Ridge® Modern series construction.

Design Overview

  • Canyon Ridge® Modern series garage doors feature key elements of contemporary architecture, including clean horizontal lines, sleek windows and aluminum accents.
  • Attractive black powder coated grip handles and step plates are provided standard. Optional aluminum grip handles are available.
  • Learn more about Canyon Ridge® Modern series design.

*Calculated door section R-value is in accordance with DASMA TDS-163.

A Focus on Green

Clopay is committed to designing, manufacturing and distributing garage doors that enhance the beauty, safety and value of your home while minimizing the impact on the environment. The Canyon Ridge® Collection helps conserve natural resources by providing a durable, reliable, low-maintenance, energy efficient door insulated with polyurethane. The steel used in Clopay’s doors is made from over 75% recycled content. All Clopay doors are made in the U.S., minimizing shipping, damage and handling. For more details on Clopay’s green practices visit clopaydoor.com/green


Door Designs

PLANK DESIGN



14"x6"
Windows in All Panel Locations


14"x6"
Windows Down Left Side
(from inside garage looking out)


14"x6"
Windows Down Right Side
(from inside garage looking out)


14"x6"
Windows Down Both Sides


35"x6"
Windows in All Panel Locations


35"x6"
Windows Down Left Side
(from inside garage looking out)


35"x6"
Windows Down Right Side
(from inside garage looking out)


35"x6"
Windows Down Both Sides

METAL (ALUMINUM) INLAY DESIGNS


Single Door

Double Door

FULL VIEW DESIGNS


Single Door

Double Door

Material Options

Glass Options

Illustrations are examples of window configurations. Both window sizes are available on single car and double car doors.

Colors

WALNUT FINISH
DARK FINISH
MEDIUM FINISH
WHITEWASH FINISH
PRIMED
SLATE FINISH
BLACK*
Black and White Wash Finish Available only on Mahogany Cladding and Overlay

Hardware Designs

STANDARD INCLUDED

SPADE LIFT HANDLES
SPADE STEP PLATE

OPTIONAL

Optional Aluminum Grip Handle
CLEAR ALUMINUM (ANODIZED)
STANDARD WHITE
BRONZE (PAINTED)
CHOCOLATE (PAINTED)
BRONZE (ANODIZED)
BLACK (ANODIZED)
DARK BRONZE (ANODIZED)

Options include:

Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

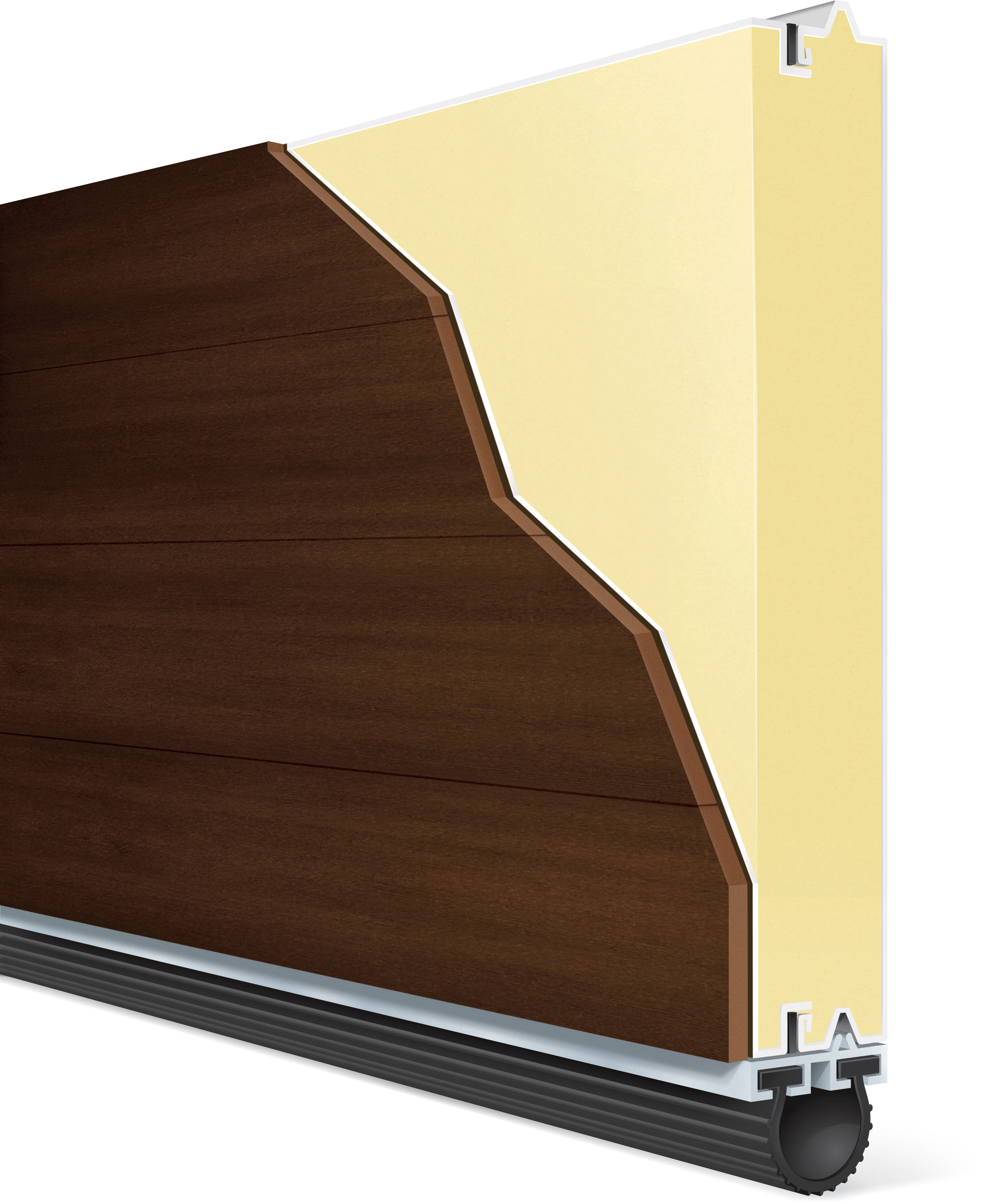

PLANK DESIGN

  • Cladding
  • Steel
  • 2" Intellicore® Polyurethane Insulation
  • Steel
Canyon Ridge Modern 20.4 R-Value Canyon Ridge Modern 5 Year Delamination Warranty Canyon Ridge Modern 5 Year Hardware Warranty



METAL (ALUMINUM) INLAY DESIGN

  • Cladding
  • Steel
  • 2" Intellicore® Polyurethane Insulation
  • Steel
Canyon Ridge Modern 18.4 R-Value Canyon Ridge Modern 5 Year Delamination Warranty Canyon Ridge Modern 5 Year Hardware Warranty
Canyon Ridge Modern Metal Inlay Construction

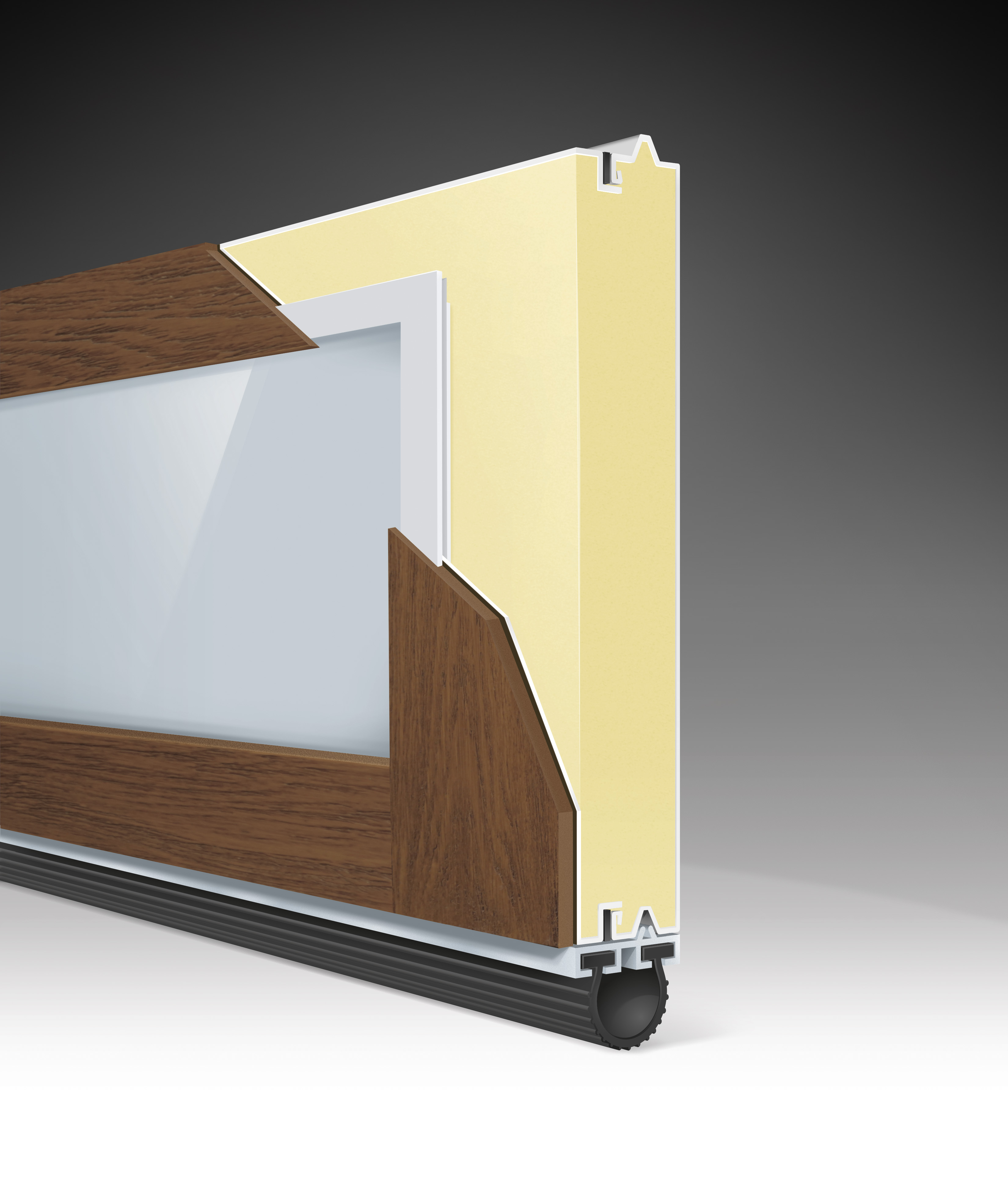

FULL-VIEW DESIGN

  • Overlay (Full View)
  • Steel
  • 2" Intellicore® Polyurethane Insulation
  • Steel
Canyon Ridge Modern - 6.3 R-Value Canyon Ridge Modern 5 Year Delamination Warranty Canyon Ridge Modern 5 Year Hardware Warranty



Intellicore insulation technology
Warmer. Quieter. Stronger.

Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability. (Click for details)
